Functionality: fully functional
Rental: is possible
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Note: The trailer may only be operated with towing vehicles ensuring proper ABS functionality
* Side walls: 4 mm continuous steel
* Floor: 5 mm continuous steel
axle configuration: 3 axles
Customized Transport Solution
Configure your Fliegl vehicle according to your individual requirements. The vehicle shown is an example configuration. Production and equipment are tailored to customer specifications
## Chassis – Semi-Tipper Trailer
* High-tensile fine-grain steel welded lightweight construction with slight frame offset
* Fifth wheel plate with replaceable 2” king pin
* 24-tonne 2-speed landing gear
single-side operation
with semi-round base and straight mounting plate
* Integrated mudguard mounting system with stone-repellent surface finish
* Spray flaps only on last axle
* 1 tarpaulin support bar with holder
* 1 aluminium ladder approx. 3,550 mm with side mounting brackets
* Side-mounted tarpaulin bow holder on chassis
## Axles & Suspension
* SAF disc brake axles with 430 mm brake discs
* Laser-aligned axles and running gear for reduced tyre wear and fuel consumption
* Air suspension system

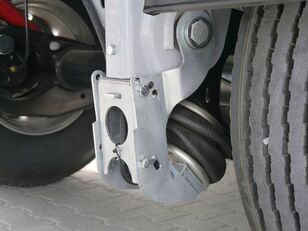

* 1st axle as automatic lifting axle
additionally electronically controlled from the truck
* Includes forced lowering and traction aid
* Galvanised lifting axle mechanism
* 10-year anti-corrosion warranty against perforation rust
## Braking System
* Dual-line compressed air braking system
* Colour-coded pipe routing for easy maintenance
* Two non-interchangeable coupling heads at the front
* 24 V EBS electronic braking system with front EBS socket
* Raise-and-lower valve integrated
## Vehicle Stability System
* Automatic tipping lowering function with shut-off valve
* Axle load detection via EBS CAN bus signal for display in the driver’s cabin
## Wheels & Tyres
* 385/65 R 22.5 tyres
* Steel rims
factory silver finish
* TPMS (Tyre Pressure Monitoring System) according to ECE R141
displayed via truck EBS system
## Electrical System
* 24 V electrical system
* LED multi-chamber rear lights
* Yellow LED side marker lights linked to indicators (flashing side lights)
* 2 white LED front position lights
* 2 white/red LED rear outline marker lights
* 2 × 7-pin and 1 × 15-pin front sockets
* 2 additional integrated rear LED work lights
## Hydraulic System
* Low-pressure hydraulic cylinder
max. 170 bar
* First stage hard chrome plated
* HDK screw coupling
fixed section
NW 48 mm
* Hydraulic operation via truck PTO (power take-off)
* Hydraulic connection with hose and HDK screw coupling NW 48 mm with knurled nut
## Tipping Body – Steel Tipping Body (HB 400)
* High wear-resistant HB 400 steel body construction
* Sloped front wall with external hydraulic cylinder mounting
* Foldable aluminium protective sheet on right-hand side for sliding tarpaulin
* External shovel and broom holder on front wall
* Internal access ladder at front wall
Bjbyr Tbozhgkijyxedg
### Rear Door System
* “Membrane” tailgate design
* Two-piece rear door (50/50 split)
* One sliding bolt integrated into right-hand door leaf
* External rotary locking system with bottom mechanical locking
## Operating Platform & Equipment
* Standing platform with access ladder
* Connection panel for air
electrics and braking system with large free working space for optimal operation
* Sliding tarpaulin system
one-sided storage (right-hand side driving direction)
